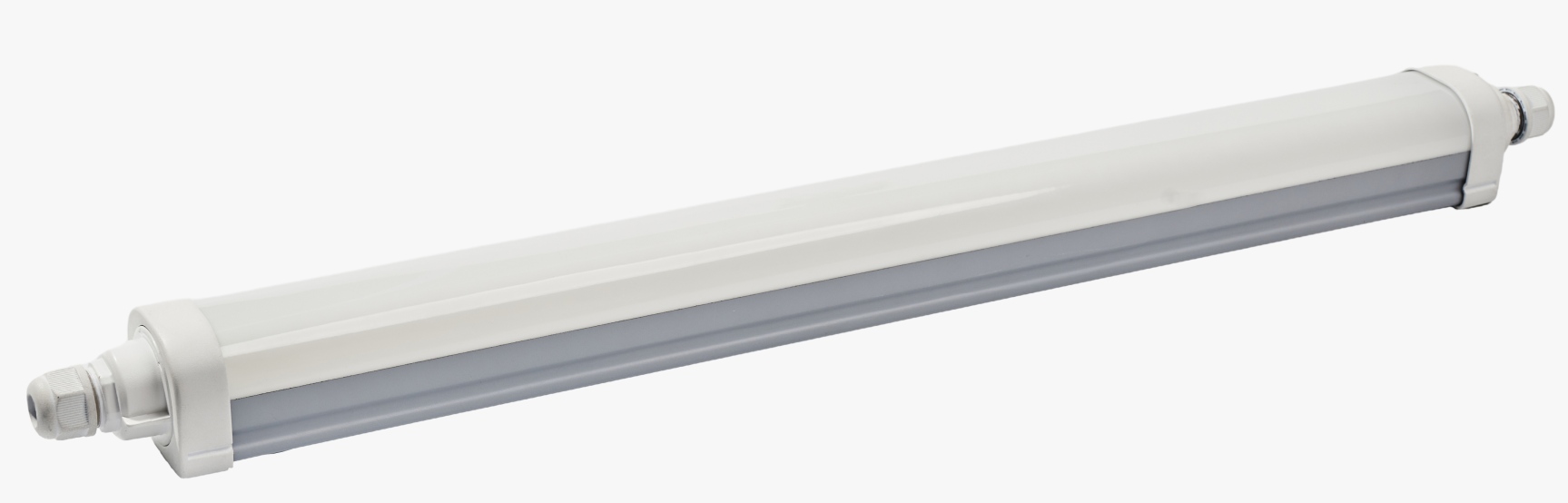

IP65 LED Batten Light – SMD G series
Sturdy, reliable, durable, efficient and energy‑saving 18‑46W SMD G‑series IP65 LED waterproof light fixture. It delivers excellent lighting performance with up to 140lm/W high efficacy. Adopts well‑sealed structure for dust‑proof and water‑proof performance, featuring long service life and great energy‑saving effect. Simple and fast installation, ideal for damp, complex commercial and industrial sites. Customizable specifications are supported, with optional 0‑10V, DALI, sensor and emergency functions to meet diverse project requirements.
option:
microwave sensor
DALI
dimmable
linkable
EMERGENCY
CCT Switch
Technical Data
| Model | Item Code | Size | Power | Power Factor | Lumen | Light Efficacy | Color Temp | CRI | Beam Angle | IP Rating |
|---|---|---|---|---|---|---|---|---|---|---|
| LED‑SMD G0.6 | TH1L38G060120 | 642.5*60*53 | 18W | ≥0.9 | 2700lm | 140lm/W | 3000K/4000K/5700K/6500K | >80 | 120° | IP65 |
| LED‑SMD G1.2 | TH1L38G120140 | 1242.5*60*53 | 32W | ≥0.9 | 4800lm | 140lm/W | 3000K/4000K/5700K/6500K | >80 | 120° | IP65 |
| LED‑SMD G1.5 | TH1L38G150150 | 1542.5*60*53 | 46W | ≥0.9 | 6900lm | 140lm/W | 3000K/4000K/5700K/6500K | >80 | 120° | IP65 |
Application scenarios
THRIVELighting Fixtures Application
Widely applicable to industrial and commercial lighting such as workshop,warehouse,Logistics,underground parking lot,garage,food factory,hospital,metro station,corridor,passage,liftway,under bridge etc.
Features of THRIVE IP65 LED Batten Light – SMD G series
- Polycarbonate bi-color extruded housing enable it is durable and long-lasting
- Customized requirements such as color, power, lumens are available
- Easy installation,long-term and efficient work,long lifespan and high energy efficiency
- The end cap can be opened through rotation to do quick wire connection,power selection and CCT adjustment.
- High environmental adaptability,IK08 impact resistance,IP65 protection grade enables it to adapt to various complex and harsh environments
- OEM&ODM customized requirements are acceptable
- Option for extended function for 0-10V,DALI,SENSOR,Emergency
